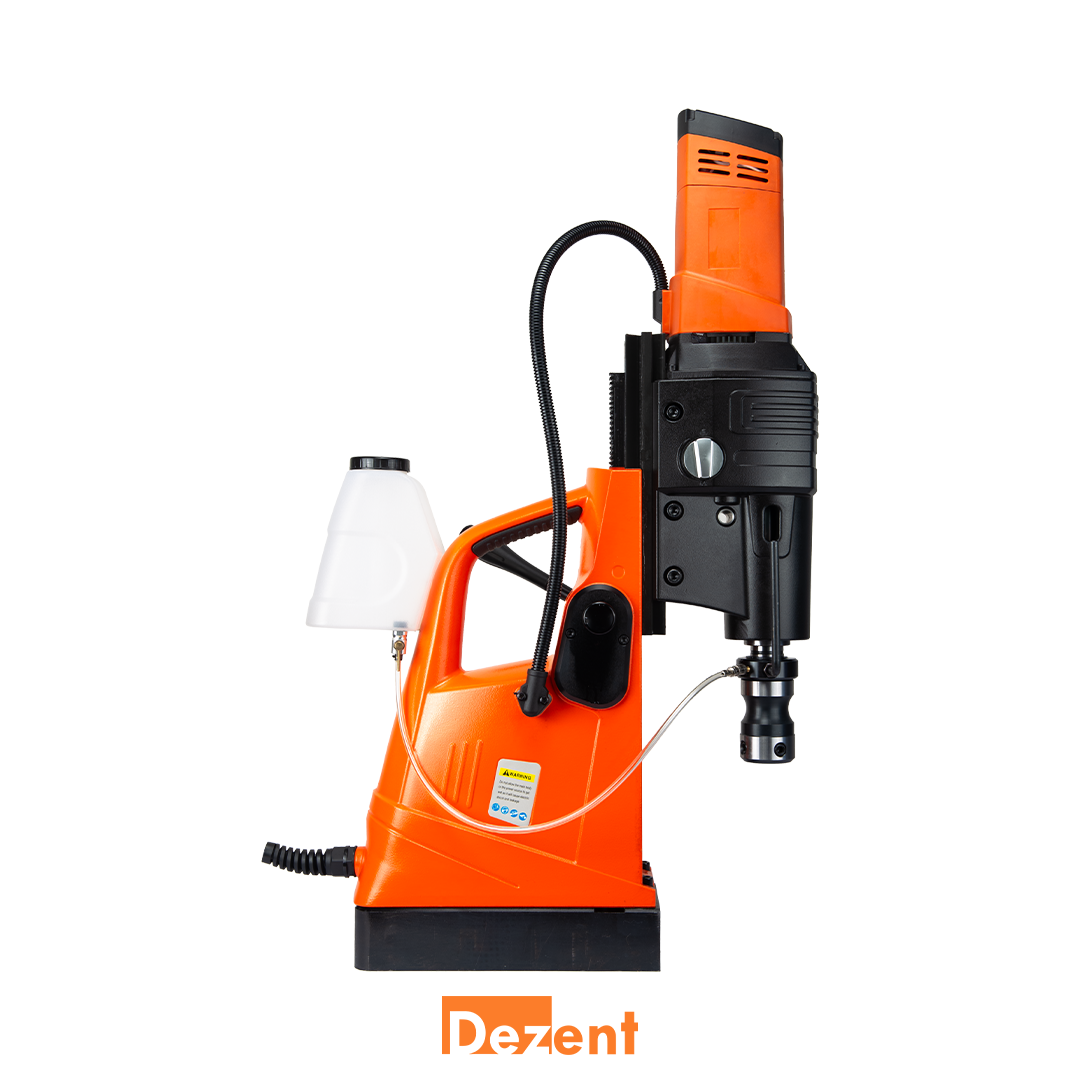

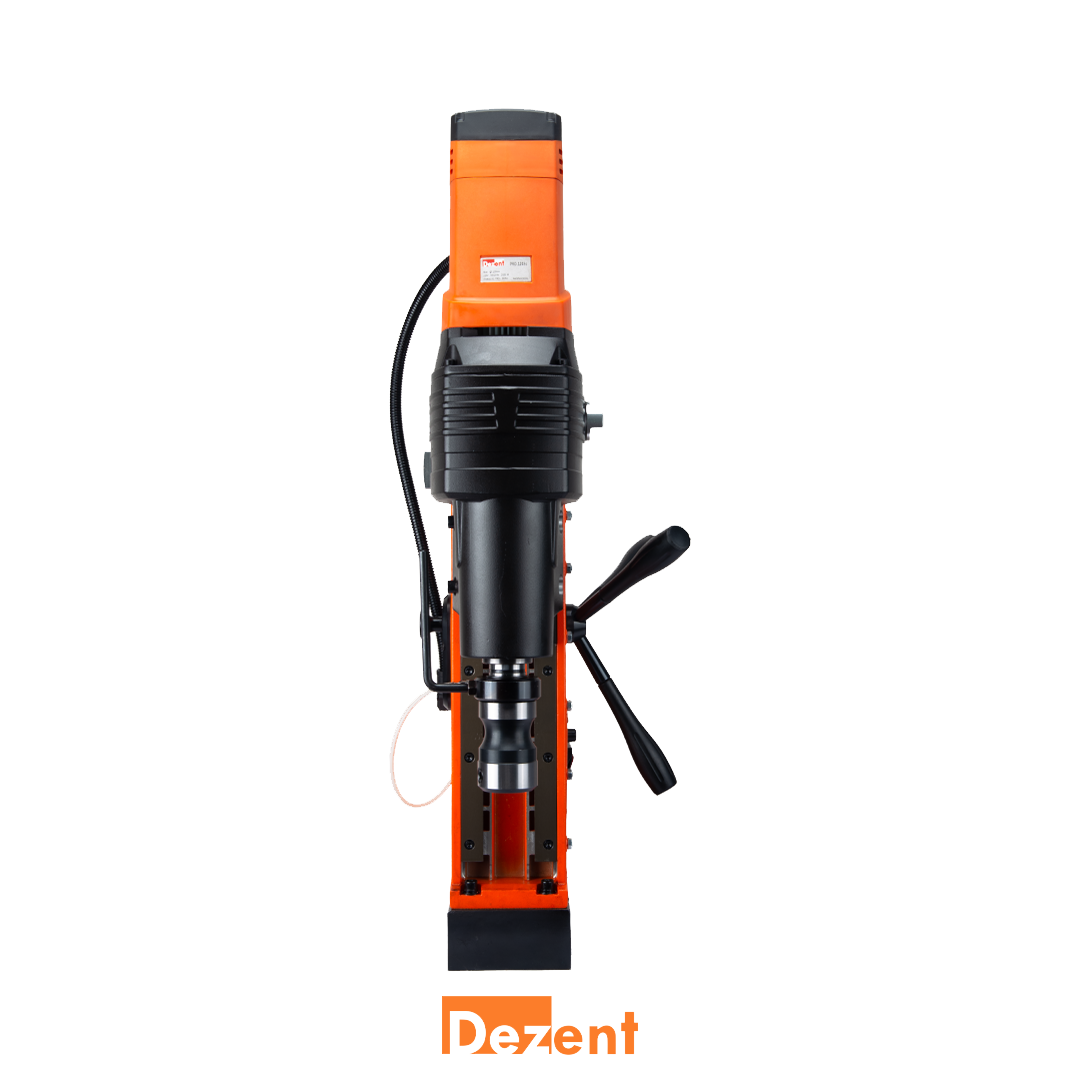

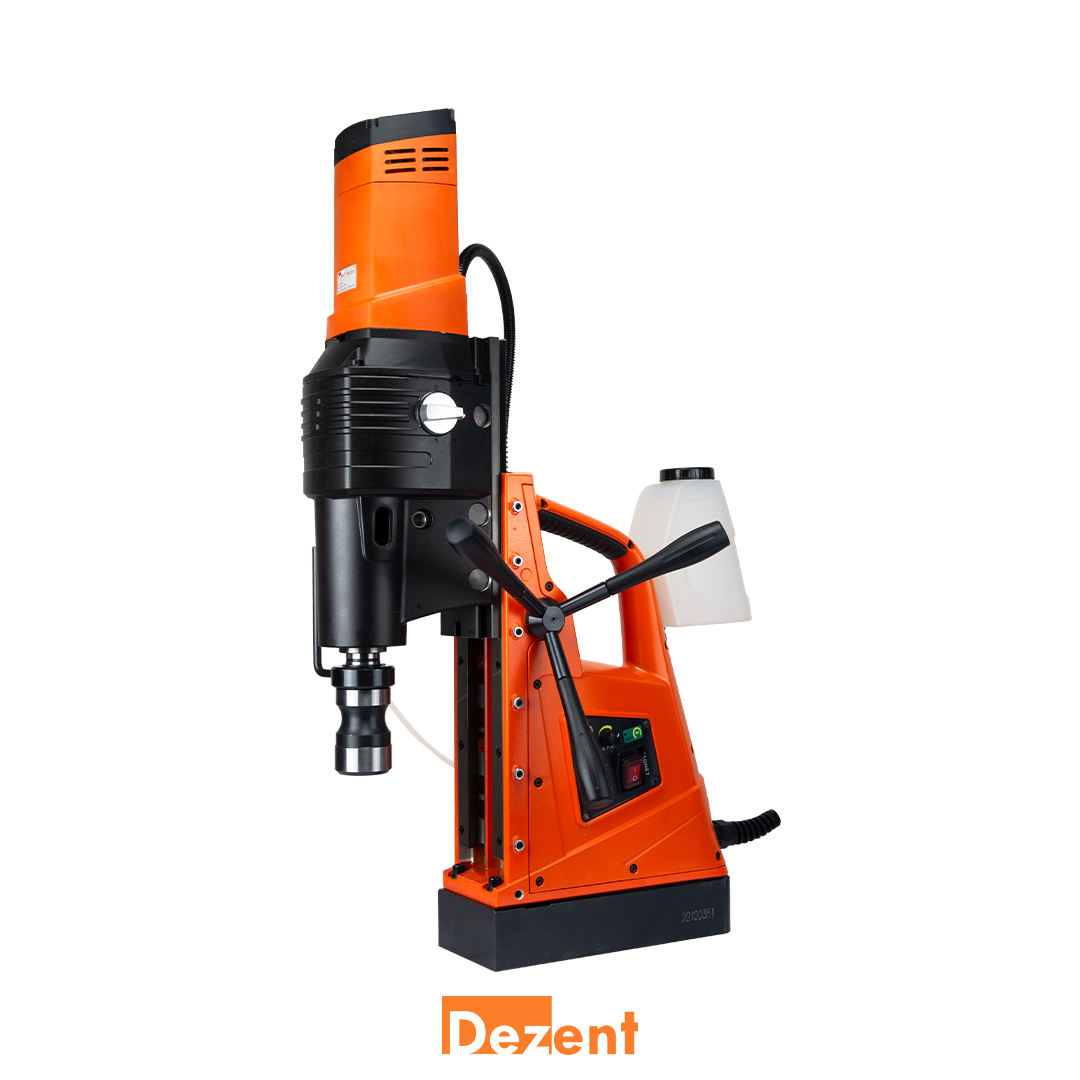

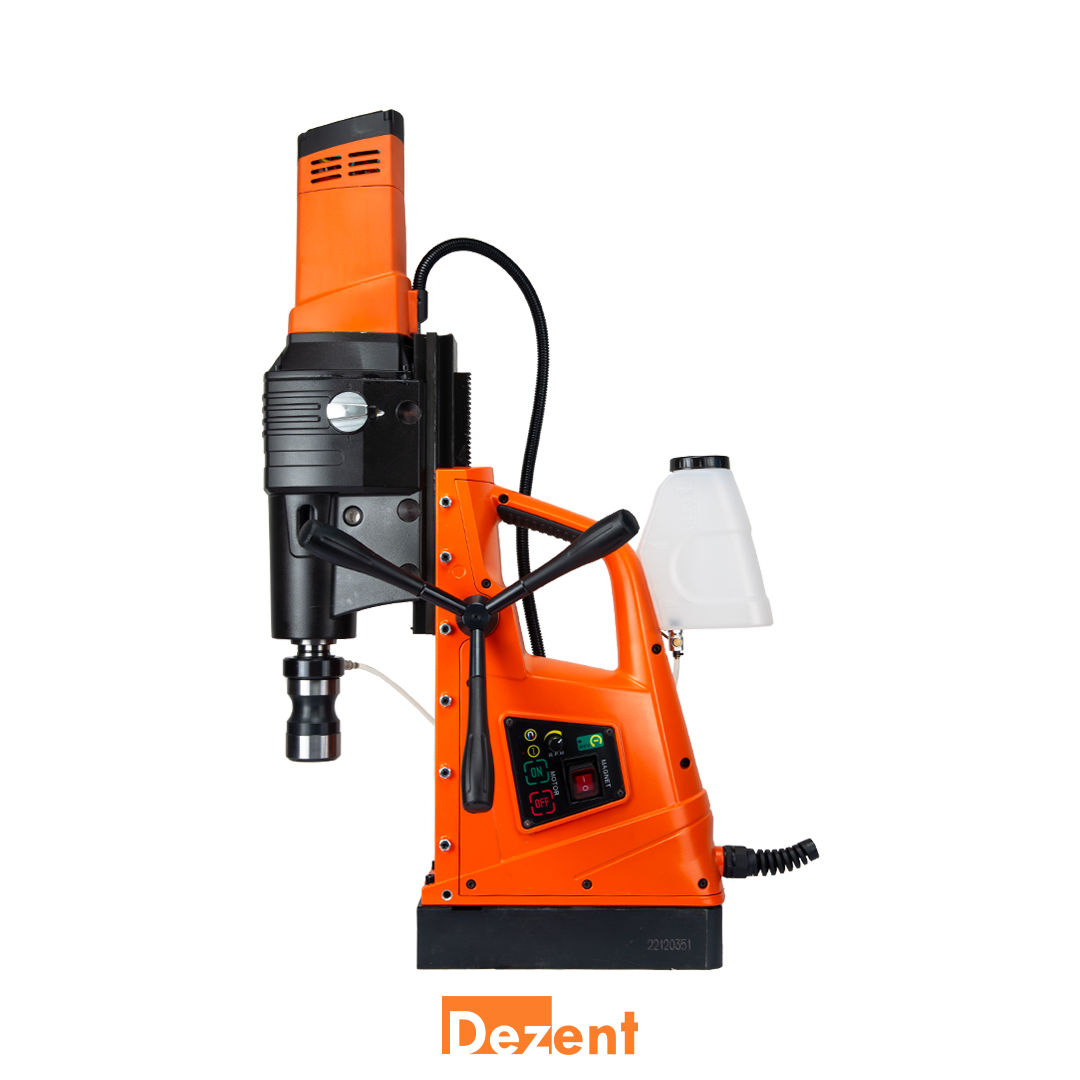

PRO.1245ST TWIN RAIL SLIDE Magnetic Drill Press

The Deznet PRO.1245sT is a 2500W industrial drill press with 220 mm stroke, 200 mm cutting depth, and M3–M33 tapping. Built for precision and power, it features a twin rail slide system, 2000 kg magnetic base, and internal coolant—ideal for heavy-duty metal work.

Annular Cutters

120mm

Twist Drills

42mm

Motor Power

2500w

Product Information

PRO.1245sT TWIN RAIL SLIDE Magnetic Drill Press

Product Description

The PRO.1245sT TWIN RAIL SLIDE is a high-performance magnetic drill press, designed for precision drilling and tapping in industrial applications. With its Twin Rail Slide System, it ensures smooth and accurate movement, allowing an extended stroke of 220 mm for deep and versatile drilling operations.

Drilling & Tapping Capabilities

Core Drilling: Ø12 – Ø80 mm (3/8" - 3 1/4")
• Twist Drilling: Ø3 – Ø42 mm (3/16" - 1 5/8") (Pre-drilling recommended at 8 mm)
• Countersinking: Ø10 – Ø80 mm (3/8" - 3 5/32")
• Tapping: M3 – M33

Included Accessories

✔ Safety Belt
✔ 3 Hex Keys
✔ 2 Rubber Seals
✔ Coolant Bottle with Hose
✔ 1 MT4 Morse Taper

Why Choose PRO.I245sT?

🔹 Versatile Cutting Depth – Standard 55 mm, expandable up to 200 mm with the HEAVY-DUTY Twin Rail Slide System.
🔹 Tapping Functionality – Enables thread cutting from M3 to M33, adding extra functionality.
🔹 Precision Engineering – Ensures smooth, accurate drilling and tapping in industrial applications.
🔹 High Performance – Designed for heavy-duty drilling in steel and metal fabrication.

Upgrade to the PRO.I245sT TWIN RAIL SLIDE Magnetic Drill Press today for superior power, precision, and durability!

TITLE	DESCRIPTION
✅ Powerful 2500W Motor	Delivers high torque and consistent performance.
✅ Extended Stroke	Standard 55 mm cutting depth, expandable up to 200 mm.
✅ Magnetic Base	Strong 2000 kg (4410 lb) holding force for maximum stability.
✅ Integrated Coolant System	Automatic internal lubrication for prolonged tool life.
✅ Tool Holder	Morse taper 4 with Weldon 19 mm for secure and versatile tool fitment.
✅ Tapping Capability	Supports tapping from M3 to M33 for added versatility.
✅ Industrial-Grade Durability	Engineered for professional drilling and tapping in metal fabrication.
